1. Overview

EzyActiveMQ (Easy going to ActiveMQ Interaction) is a framework support to interact to Apache ActiveMQ, It supports:

RPC (Remote procedure call)
Publish and consume message
Serialize and Deserialize to map message's data in byte array to POJO
Annotation driven

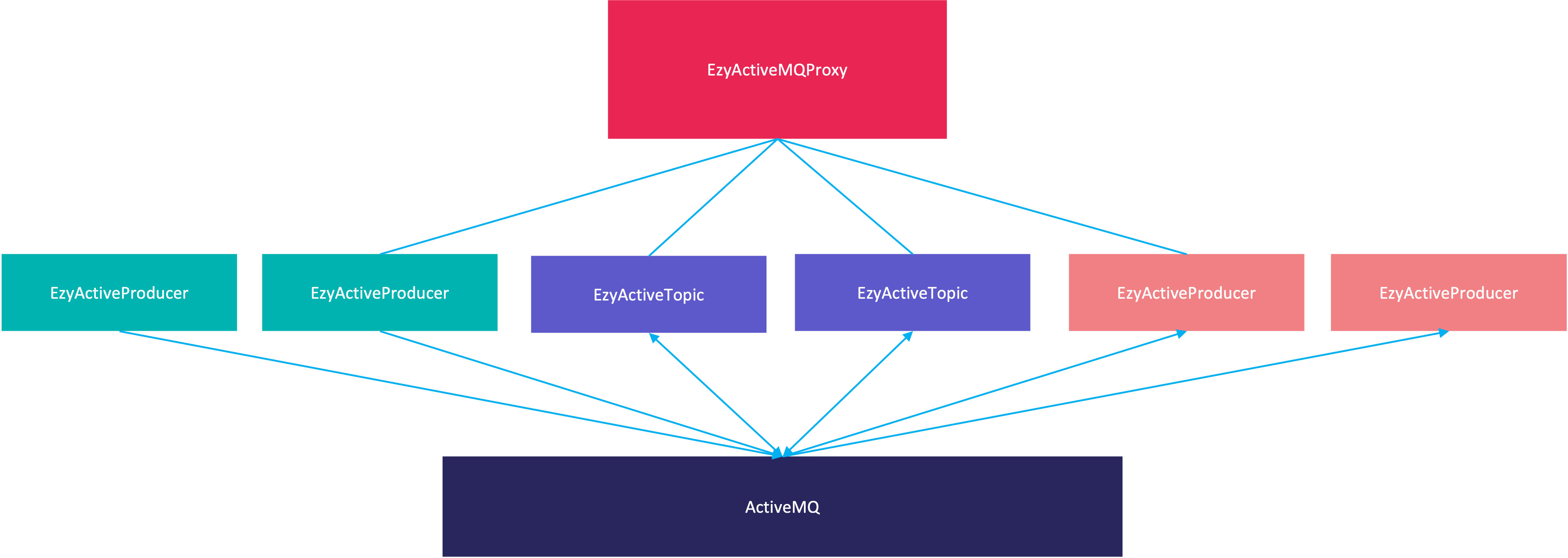

2. Structure of EzyActiveMQ

EzyActiveMQProxy: Manages producers, consumers, topics and data serializers.
EzyActiveProducer: Supports to send messages and RPC.
EzyActiveProducer: Supports to receive, consume the messages and response the RPC result
EzyActiveTopic: Supports to send and consume messages via topic

3. Install EzyActiveMQ

1. To create EzyActiveMQ we need add dependency

<dependency>
    <groupId>com.tvd12</groupId>
    <artifactId>ezymq-activemq</artifactId>
    <version>1.2.7</version>
</dependency>

The latest version can be found in the Maven Central repository. You can configure EzyActiveMQ like this:

    EzyActiveMQProxy proxy = EzyActiveMQProxy.builder()
        .scan("com.tvd12.ezymq.activemq.test")
        .build();

2. You can add to your configuration file like this:

    # for application.yaml
    activemq:
      producers:
        test: default
      consumers:
        test: default
      topics:
        hello:
          producer: default
          consumer: default

    # for application.properties
    activemq.producers.test=default
    activemq.consumers.test=default
    activemq.topics.hello.producer=default
    activemq.topics.hello.consumer=default

4. Example

Let’s say we need consume a message to sum 2 integer numbers and get the result, we can do it with EzyActiveMQ follow by bellow steps.

4.1 Create request/response classes

We need create a request class has 2 fields: a and b:

    package com.tvd12.ezymq.activemq.test.request;
    import com.tvd12.ezyfox.message.annotation.EzyMessage;
    import lombok.AllArgsConstructor;
    import lombok.Data;
    import lombok.NoArgsConstructor;
    @Data
    @EzyMessage
    @AllArgsConstructor
    @NoArgsConstructor
    public class SumRequest {
        private int a;
        private int b;
    }

And a response class has 1 field sum:

    package com.tvd12.ezymq.activemq.test.response;
    import com.tvd12.ezyfox.message.annotation.EzyMessage;
    import lombok.AllArgsConstructor;
    import lombok.Getter;
    import lombok.ToString;
    @Getter
    @EzyMessage
    @ToString
    @AllArgsConstructor
    public class SumResponse {
        private int sum;
    }

4.2 Create message handler class

Now we need create a handler class to handle the message:

    package com.tvd12.ezymq.activemq.test.handler;
    import com.tvd12.ezymq.activemq.annotation.EzyActiveHandler;
    import com.tvd12.ezymq.activemq.handler.EzyActiveRequestHandler;
    import com.tvd12.ezymq.activemq.test.request.SumRequest;
    import com.tvd12.ezymq.activemq.test.response.SumResponse;
    @EzyActiveHandler("sum")
    public class SumRequestHandler implements EzyActiveRequestHandler {
        @Override
        public Object handle(SumRequest request) {
            return new SumResponse(
                request.getA() + request.getB()
            );
        }
    }

4.3 Create a program for rpc client

We need create a class has main method to start a rpc client:

    package com.tvd12.ezymq.activemq.test;
    import com.tvd12.ezymq.activemq.EzyActiveMQProxy;
    import com.tvd12.ezymq.activemq.EzyActiveRpcProducer;
    import com.tvd12.ezymq.activemq.test.request.SumRequest;
    import com.tvd12.ezymq.activemq.test.response.SumResponse;
    public final class SumRpcClientProgram {
        public static void main(String[] args) {
            final EzyActiveMQProxy proxy = EzyActiveMQProxy
                .builder()
                .scan("com.tvd12.ezymq.activemq.test")
                .build();
            final EzyActiveRpcProducer producer = proxy.getRpcProducer("test");
            SumResponse sumResponse = producer.call(
                "sum",
                new SumRequest(1, 2),
                SumResponse.class
            );
            System.out.println("sum result: " + sumResponse);
        }
    }

With configration like this:

    # for application.yaml
    activemq:
      producers:
        test: default

4.4 Create a program for rpc server

We need create a class has main method to start consumers:

    package com.tvd12.ezymq.activemq.test;
    import com.tvd12.ezymq.activemq.EzyActiveMQProxy;
    public final class SumRpcServerProgram {
        public static void main(String[] args) {
            EzyActiveMQProxy
                .builder()
                .scan("com.tvd12.ezymq.activemq.test")
                .build();
        }
    }

With configration like this:

    # for application.yaml
    activemq:
      consumers:
        test: default

4.5 Run the program

Please make sure you have downloaded, installed, and started the ActiveMQ broker.

Now run the both SumRpcServerProgram and SumRpcClientProgram programs separately, we will see the log in the SumRpcClientProgram:

sum result: SumResponse(sum=3)

Next step

You can see how to configure.
